Extraction Equipment

Solvent extraction, desolventizing, evaporation and stripping systems.

JP Series

Solvent Extractor

Rotary cell-type continuous solvent extractor. Material is conveyed through extraction cells while solvent percolates through the material bed, achieving residual oil <1% in meal.

✅ Residual oil in meal: <1%
✅ Rotation cycle: 50–120 min adjustable
✅ Multi-stage counter-current percolation
✅ Suitable for pre-pressed cake and flakes

Technical Specifications

Model	Capacity (T/day)	Cell Count	Rotation (min)	Solvent Ratio
JP-20	20–50	12	60–90	0.8–1.2:1
JP-50	50–100	14	60–100	0.8–1.0:1
JP-100	100–200	16	70–110	0.7–1.0:1
JP-200	200–300	18	80–120	0.6–0.9:1
JP-300	300–500	18–20	90–120	0.6–0.8:1

DTC Series

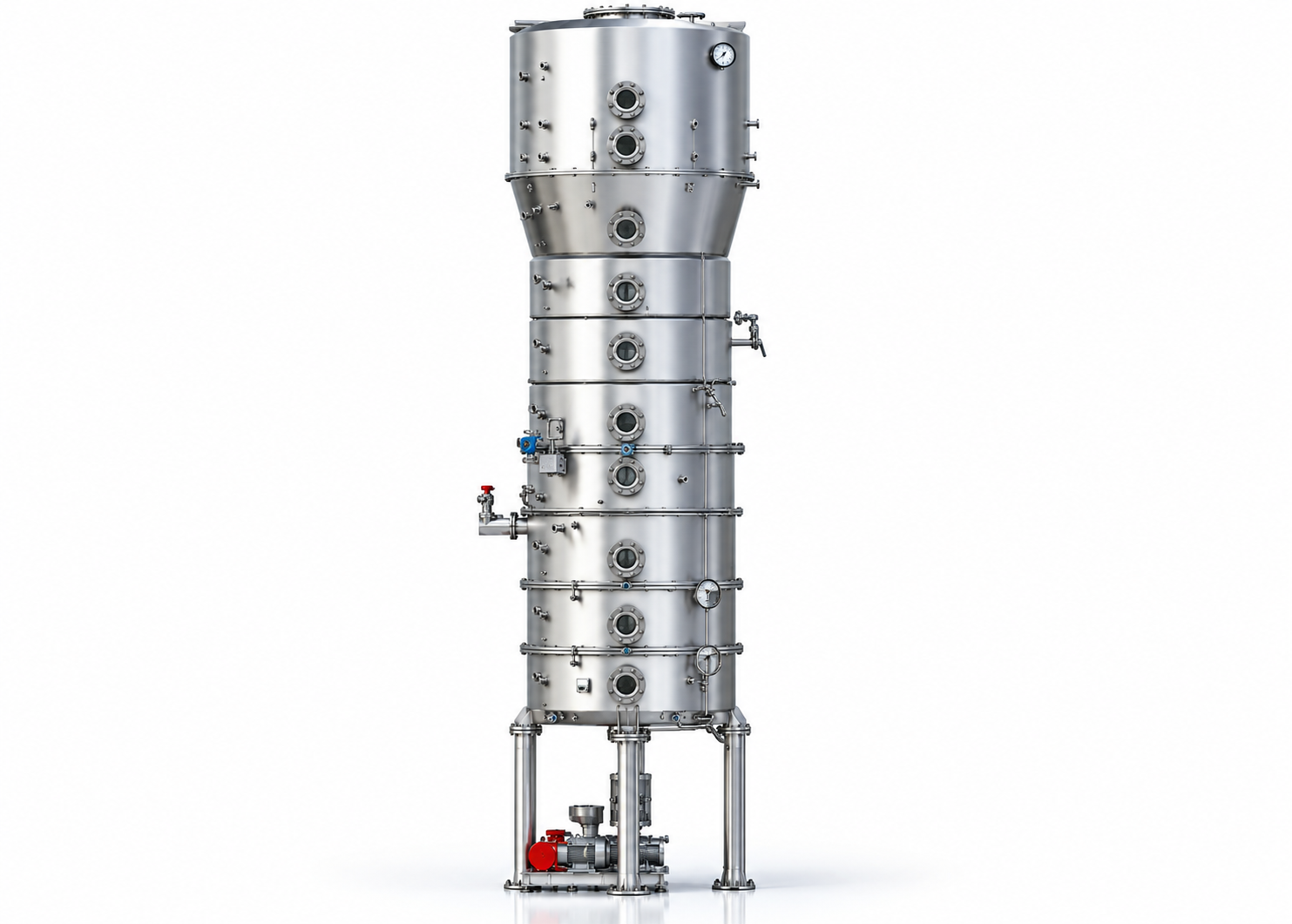

DTDC (Desolventizer-Toaster-Dryer-Cooler)

Multi-functional vertical vessel for removing solvent from extracted meal, toasting anti-nutritional factors, and drying/cooling the meal for storage or feed use.

✅ Solvent removal: >99.5% hexane recovery
✅ 5–8 layers for D-T-D-C stages
✅ Direct + indirect steam heating
✅ Meal moisture after DTDC: <12%

Technical Specifications

Model	Capacity (T/day)	Layers	Dia (mm)	Power (kW)
DTC-20	20–50	5	1,200	5.5
DTC-50	50–100	5–6	1,600	7.5
DTC-100	100–200	6–7	2,000	11
DTC-200	200–300	7–8	2,400	15
DTC-300	300–500	8	2,800	18.5

YZFQ Series

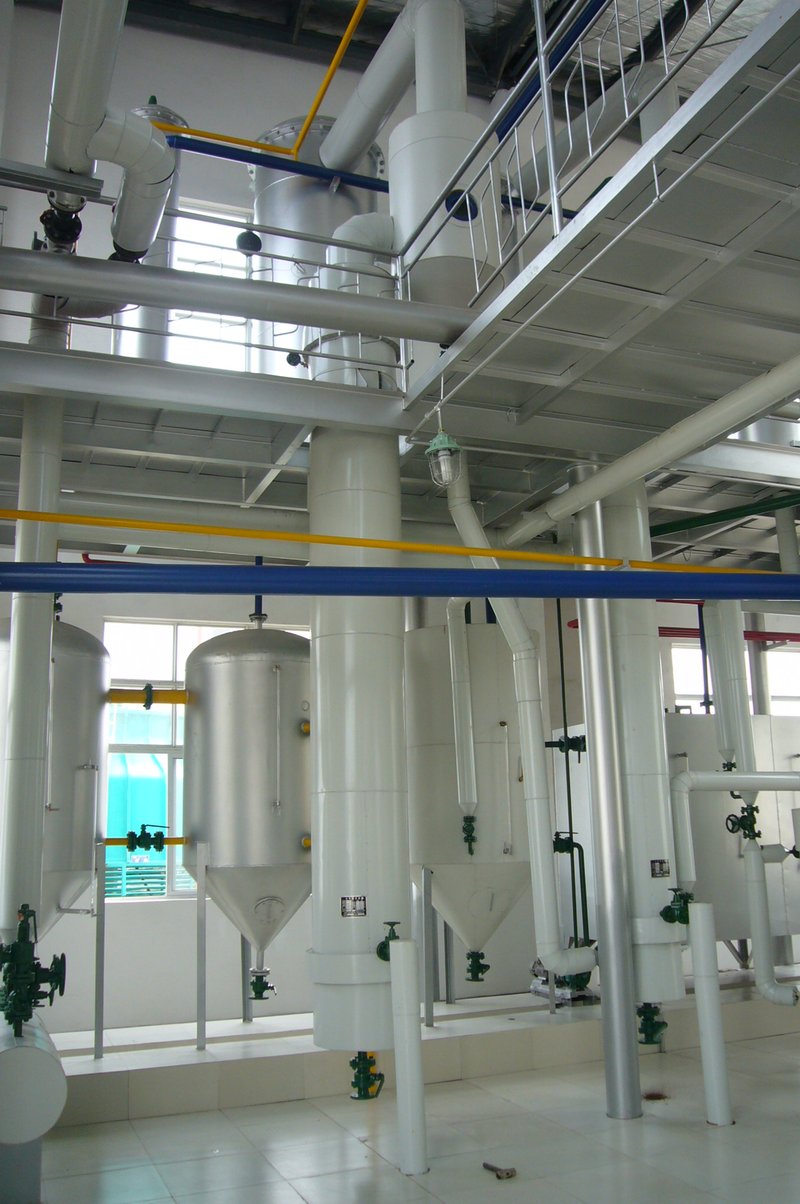

Evaporator

Two-stage falling film evaporator system for removing solvent from miscella (oil + solvent mixture). 1st stage uses waste heat; 2nd stage uses fresh steam.

✅ 1st stage: waste heat evaporation (energy saving)
✅ 2nd stage: fresh steam evaporation
✅ Oil concentration: from ~25% to ~95%
✅ Falling film type, high heat transfer efficiency

Technical Specifications

Model	Evap. Area (m²)	Capacity (T/day)	Steam Pressure (MPa)	Stage
YZFQ-40	40	20–50	0.05–0.1	1st
YZFQ-80	80	50–100	0.05–0.1	1st
YZFQ-120	120	100–200	0.1–0.2	2nd
YZFQ-180	180	200–350	0.1–0.3	2nd
YZFQ-250	250	350–500	0.1–0.3	2nd

DQT Series

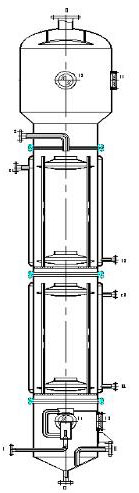

Stripper

Stripping tower for removing residual solvent from miscella after evaporation. Uses direct steam stripping under vacuum to ensure solvent content in finished oil meets safety standards (<50 ppm).

✅ High stripping efficiency, low residual solvent
✅ Multi-layer tray design for thorough contact
✅ Vacuum operation prevents oil oxidation
✅ Automatic level and temperature control

Technical Specifications

Model	Dia (mm)	Layers	Temp (°C)	Residual Solvent
DQT600	600	12–14	95–100	<50 ppm
DQT1000	1,000	14–16	95–100	<50 ppm
DQT1400	1,400	16–18	95–100	<50 ppm
DQT1800	1,800	18–20	95–100	<50 ppm
