Refining Equipment

Neutralization, bleaching, deodorization, filtration and separation equipment for edible oil refining.

LYL Series

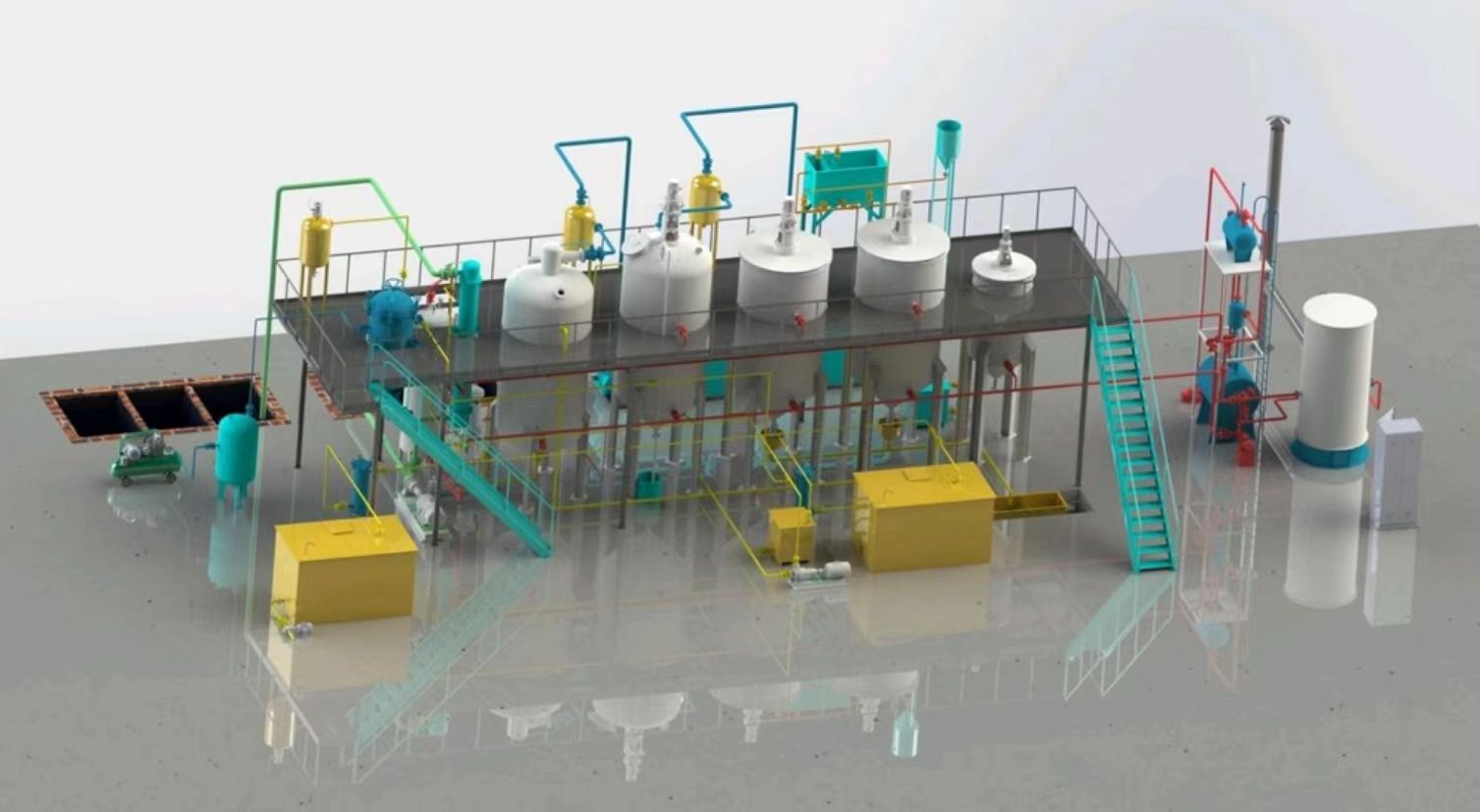

Neutralizer

Batch-type neutralization vessel for removing free fatty acids (FFA) from crude oil using alkali (caustic soda). Equipped with agitator, heating coils and soapstock discharge.

✅ FFA reduction: to <0.05%
✅ Steam jacket + direct steam injection
✅ Variable speed agitator for optimal mixing
✅ Soapstock separation by gravity or centrifuge

Technical Specifications

Model	Volume (m³)	Capacity (T/batch)	Power (kW)	Heating
LYL-5	5	2–3	2.2	Steam jacket
LYL-10	10	5–6	3.0	Steam jacket
LYL-20	20	10–12	4.0	Steam jacket
LYL-40	40	20–24	5.5	Steam jacket
LYL-80	80	40–50	7.5	Steam jacket

DHZ / DRZ Series

Centrifuge Separator

High-speed disc centrifuge for continuous separation of oil and soapstock / wash water. The core equipment in continuous refining lines for neutralization and washing stages.

✅ Self-cleaning type for continuous operation
✅ Separation efficiency: >99.5%
✅ 4,000–7,000 RPM, automatic discharge
✅ DHZ: neutralization; DRZ: water washing

Technical Specifications

Model	Capacity (T/day)	Bowl Speed (RPM)	Power (kW)	Application
DHZ-30	30–50	6,500	5.5	Neutralization
DHZ-60	50–100	5,800	11	Neutralization
DHZ-150	100–200	5,000	18.5	Neutralization
DHZ-300	200–300	4,500	30	Neutralization
DRZ-50	50–80	6,000	7.5	Water washing
DRZ-150	100–200	5,200	15	Water washing

TXG / TXT Series

Deodorizer / Deodorization Tower

Removes volatile odor and flavor compounds from bleached oil under high temperature and high vacuum. TXG: batch-type deodorizer pot; TXT: continuous deodorization tower.

✅ Operating temp: 240–260°C
✅ Vacuum: ≤0.3 mbar absolute
✅ Stripping steam: 1.5–3% of oil weight
✅ TXG: batch; TXT: continuous packed column

Technical Specifications

Model	Capacity (T/day)	Temp (°C)	Vacuum (mbar)	Type
TXG-10	10–20	240–260	≤0.5	Batch pot
TXG-30	20–50	240–260	≤0.5	Batch pot
TXT-50	50–100	240–260	≤0.3	Continuous tower
TXT-100	100–200	240–260	≤0.3	Continuous tower
TXT-200	200–300	240–260	≤0.3	Continuous tower

NYB Series

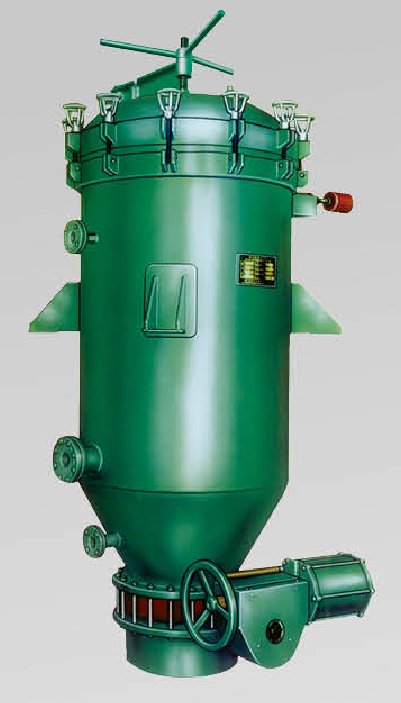

Leaf Vibrating Filter

Vertical leaf filter for separating bleaching earth and solid impurities from bleached oil. Features automatic cake discharge by vibration.

✅ Filtration clarity: <5 ppm suspended solids
✅ Automatic vibration cake discharge
✅ Stainless steel filter leaves
✅ Operating pressure: 0.2–0.4 MPa

Technical Specifications

Model	Filter Area (m²)	Capacity (T/day)	Leaves	Pressure (MPa)
NYB-10	10	10–20	8–10	0.2–0.4
NYB-20	20	20–40	12–14	0.2–0.4
NYB-40	40	40–80	18–20	0.2–0.4
NYB-80	80	80–150	24–28	0.2–0.4
NYB-120	120	150–250	30–36	0.2–0.4

TSG / TST Series

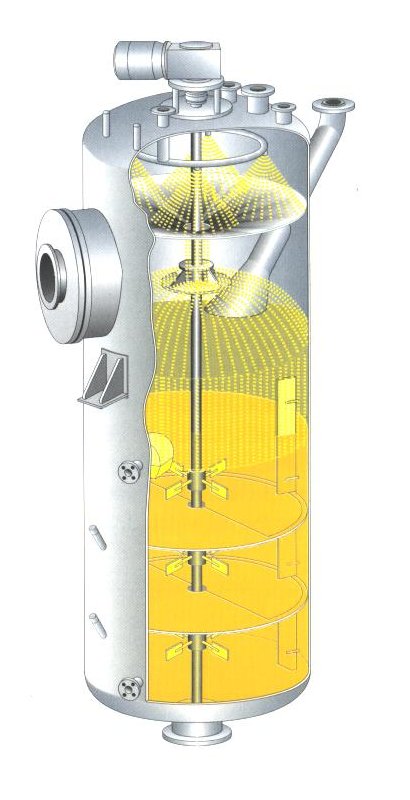

Bleacher / Bleaching Tower

Bleaching equipment for removing pigments, residual phospholipids and oxidation products from neutralized oil. Available as batch bleaching kettle (TSG) or continuous bleaching tower (TST).

✅ High decolorization efficiency
✅ Low bleaching earth consumption
✅ Vacuum operation prevents oxidation
✅ Batch (TSG) or continuous (TST) options

Technical Specifications

Model	Capacity (T/day)	Volume (m³)	Temp (°C)	Vacuum (MPa)
TSG-5	10–30	5	100–110	-0.09
TSG-10	30–60	10	100–110	-0.09
TSG-20	60–120	20	100–110	-0.09
TST-100	100–200	—	100–120	-0.09
TST-300	200–300	—	100–120	-0.09
